ARML Hardware Reference Design
The AR Magic Lantern prototype described here is an open-source reference design that can be built from components available to the general public.
If you are interested in obtaining an ARML hardware developer kit, please contact us on our Discord.
Contents
Hardware Summary

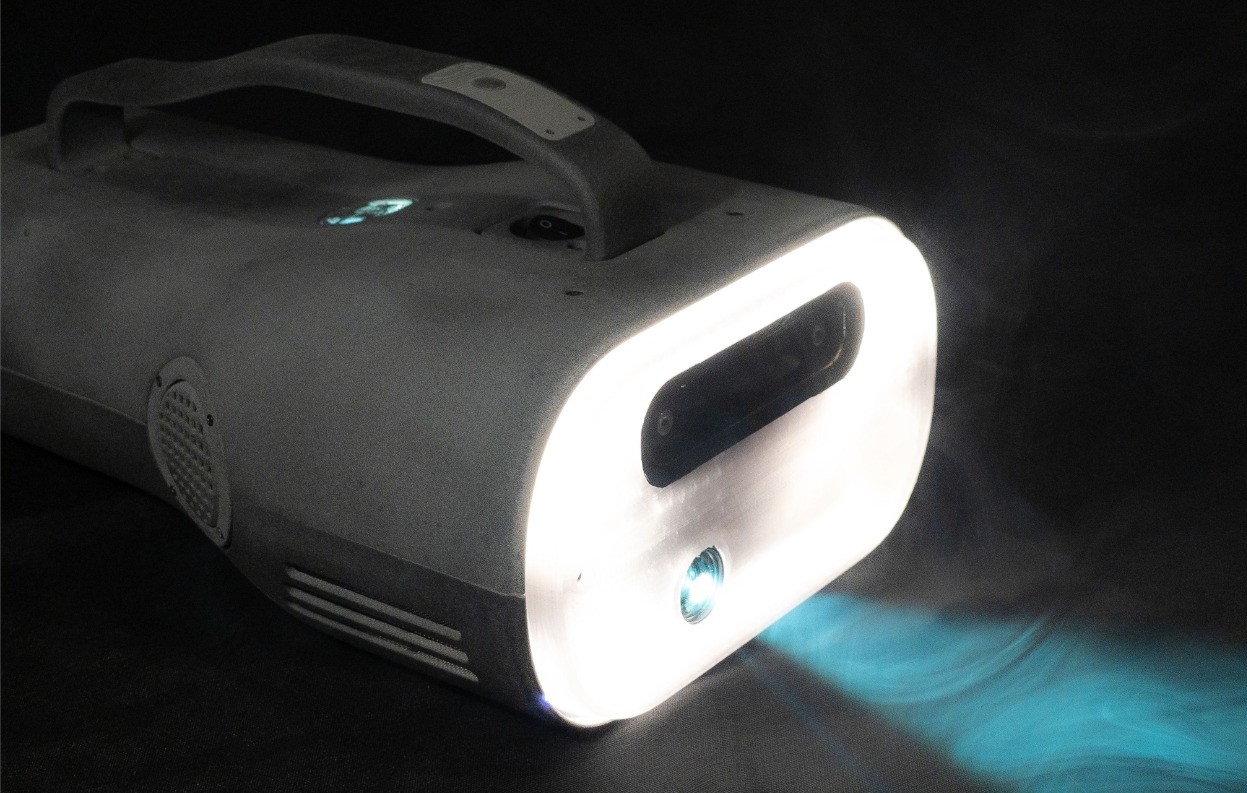

Photo of AR Magic Lantern with system powered on
In addition to a powerful, 600 ANSI lumen projector, the ARML contains a camera/IMU module, a mainboard with a powerful processor and GPU, stereo speakers, a microphone, and an embedded cooling system. It is powered by a rechargeable, swappable lithium-ion battery that allows 90 minutes to 2 hours of play time, depending on the system load. The system also integrates an Arduino-compatible microcontroller for marshalling input from a button on the device's handle and controlling an LED array mounted in the front of the ARML.
Physical Specifications
| Attribute | Value |
|---|---|
| Max Width (front) | 200mm |
| Height (front) | 110mm |
| Width (back) | 145mm |
| Height (back) | 80mm |
| Max Height (with handle) | 150mm |
| Length | 330mm |
| Weight (without battery) | 1.6kg |
| Weight (with 10Ah battery1) | 1.9kg |
Electrical Specifications
These specifications apply when powering the ARML via the connector in the battery compartment. For information on powering the device via the USB-C port on the back, see Using USB-C power.
| Attribute | Value |
|---|---|
| Min input voltage | 11VDC |
| Max input voltage | 13VDC |
| Current (min) | 5A |
| Current (typical) | 8A |
| Current (max) | 10A |
| Autonomy (with 10Ah battery1) | 1.5 - 2 hours |
| Battery charge time (10Ah battery, 2A charger2) | 12 hours |
| Battery charge time (10Ah battery, 5A charger3) | ~3 hours |
